2SD1475 - Silicon NPN Transistor

Panasonic

📥 Download Datasheet

2SD1475 Datasheet Preview — Preview of 2SD1475 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SD1475
Manufacturer	Panasonic
File Size	70.46 KB
Description	Silicon NPN Transistor
Datasheet	2SD1475_Panasonic.pdf

2SD1475 Product details

Features

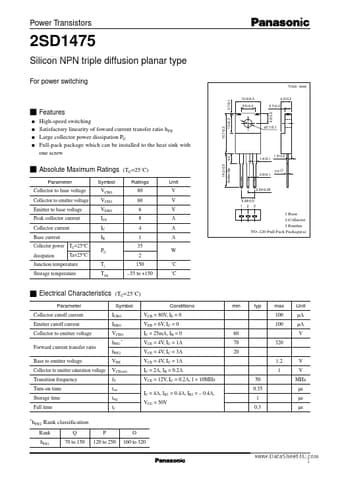

q q q q High-speed switching Satisfactory linearity of foward current transfer ratio hFE Large collector power dissipation PC Full-pack package which can be installed to the heat sink with one screw (TC=25˚C) Ratings 80 60 6 8 4 1 35 2 150.
55 to +150 Unit V V V A A A W ˚C ˚C 7.5±0.2 16.7±0.3 φ3.1±0.1 4.0 1.4±0.1 1.3±0.2 Solder Dip s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector.
