XP2210 - Silicon NPN epitaxial planer transistor

Features

  • q q Two elements incorporated into one package. (Base-coupled transistors with built-in resistor) Reduction of the mounting area and assembly cost by one half. 2.0±0.1 1 2 3 5 0.65 4 0.9± 0.1 q UN1210 × 2 elements 0.7±0.1 s Basic Part Number of Element 0.2 s Absolute Maximum Ratings Parameter Collector to base voltage Rating Collector to emitter voltage of element Collector current Total power dissipation Overall Junction temperature Storage temperature Symbol VCBO VCEO IC PT Tj Tst.

📥 Download Datasheet

Datasheet Details

Part number XP2210
Manufacturer Panasonic
File Size 32.89 KB
Description Silicon NPN epitaxial planer transistor
Datasheet download datasheet XP2210 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XP2212 photomultiplier tubes PHOTONIS
XP221P05013R-G P-channel MOSFET Torex
XP221P0501TR-G P-channel MOSFET Torex Semiconductor
XP2206 A tube Photonis
XP222N03013R-G N-channel MOSFET Torex Semiconductor

Other Datasheets by Panasonic

Part Number Description
XP2211 Silicon NPN epitaxial planer transistor
XP2215 Silicon NPN epitaxial planer transistor
XP2401 Silicon PNP epitaxial planer transistor
XP2501 Silicon NPN epitaxial planer transistor

Full PDF Text Transcription

Click to expand full text

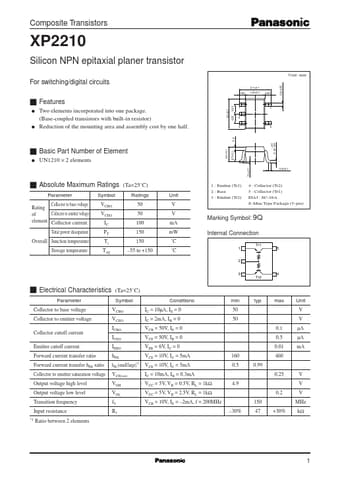

Composite Transistors XP2210 Silicon NPN epitaxial planer transistor Unit: mm 2.1±0.1 0.425 1.25±0.1 0.425 0.2±0.05 0.12 – 0.02 +0.05 For switching/digital circuits 0.65 s Features q q Two elements incorporated into one package. (Base-coupled transistors with built-in resistor) Reduction of the mounting area and assembly cost by one half. 2.0±0.1 1 2 3 5 0.65 4 0.9± 0.1 q UN1210 × 2 elements 0.7±0.1 s Basic Part Number of Element 0.
