PNZ330CL - PIN Photodiode

Name: PNZ330CL
SKU: PNZ330CL-465165

Panasonic Semiconductor

The PNZ330CL by Panasonic Semiconductor is a PIN Photodiode. Below is the official datasheet preview.

Datasheet Details

Part number	PNZ330CL
Manufacturer	Panasonic Semiconductor
File Size	45.35 KB
Description	PIN Photodiode
Datasheet	PNZ330CL_PanasonicSemiconductor.pdf

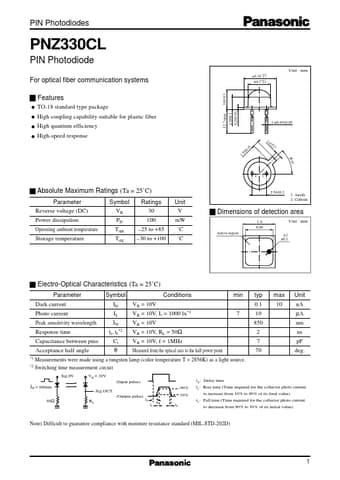

Additional preview pages of the PNZ330CL datasheet.

TO-18 standard type package High coupling capability suitable for plastic fiber High quantum efficiency High-speed response 3.0±0.3 ø5.35 +0.2.
0.1 ø4.2 +0.1.
0.2 12.7 min. 2.0±0.1 0.2±0.05 2-ø0.45±0.05 0.
1. 5 .1 +0 0.1 1. 0± 0 .1 5 3˚ 45± 2 1 Absolute Maximum Ratings (Ta = 25˚C) Parameter Reverse voltage (DC) Power dissipation Operating ambient temperature Storage temperature Symbol VR PD Topr Tstg Ratings 30 100.
25 to +85.
30 to +100 Unit V.
