PNZ313 - PIN Photodiode

Features

  • Fast response which is well suited to high speed modulated light detection : tr, tf = 50 ns (typ. ) High sensitivity, high reliability Peak sensitivity wavelength matched with infrared light emitting diodes : λP = 960 nm (typ. ) Wide detection area, wide acceptance half angle : θ = 65 deg. (typ. ) Adoption of visible light cutoff resin 13 min. 2.3±0.3 2-1.2±0.15 2-0.6±0.15 0.41±0.15 2 1 5.08±0.25 Absolute Maximum Ratings (Ta = 25˚C) Parameter Reverse voltage (DC) Power dissipation Operating ambi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PNZ154 Silicon planar type Phototransistors Panasonic

Other Datasheets by Panasonic

Part Number Description
PNZ313B PIN Photodiode
PNZ3108 PIN Photodiode
PNZ3112 PIN Photodiode
PNZ312D Dual Division Silicon PIN Photodiode
PNZ300F Silicon PIN Photodiodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

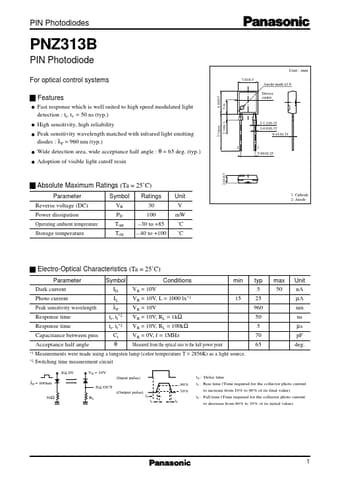

PIN Photodiodes PNZ313B PIN Photodiode Unit : mm For optical control systems 8.0±0.5 5.0 7.0±0.5 Anode mark ø1.6 Device center Features Fast response which is well suited to high speed modulated light detection : tr, tf = 50 ns (typ.) High sensitivity, high reliability Peak sensitivity wavelength matched with infrared light emitting diodes : λP = 960 nm (typ.) Wide detection area, wide acceptance half angle : θ = 65 deg. (typ.) Adoption of visible light cutoff resin 13 min. 2.3±0.3 2-1.2±0.15 2-0.6±0.15 0.41±0.15 2 1 5.08±0.25 Absolute Maximum Ratings (Ta = 25˚C) Parameter Reverse voltage (DC) Power dissipation Operating ambient temperature Storage temperature Symbol VR PD Topr Tstg Ratings 30 100 –30 to +85 – 40 to +100 Unit V mW ˚C ˚C 2.8±0.
