MN65531AS - Low Power 6-Bit CMOS A/D Converter for Image Processing

Panasonic Semiconductor

The MN65531AS by Panasonic Semiconductor is a Low Power 6-Bit CMOS A/D Converter for Image Processing. Below is the official datasheet preview.

📥 Download Datasheet

MN65531AS Low Power 6-Bit CMOS A/D Converter for Image Processing by Panasonic Semiconductor - Datasheet Preview — Official preview page of the **MN65531AS** Low Power 6-Bit CMOS A/D Converter for Image Processing datasheet (Panasonic Semiconductor).

Datasheet Details

Part number	MN65531AS
Manufacturer	Panasonic Semiconductor
File Size	52.52 KB
Description	Low Power 6-Bit CMOS A/D Converter for Image Processing
Datasheet	MN65531AS_PanasonicSemiconductor.pdf

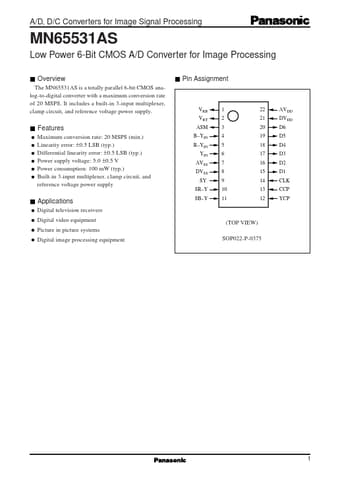

Additional preview pages of the MN65531AS datasheet.

MN65531AS Product details

Description

Pin No. YIN R YIN YIN AVSS DVSS SY SR Y SB Y YCP CCP CLK D1 D2 D3 D4 D5 D6 DVDD AVDD Function Description Reference voltage output (BOTTOM) Reference voltage output (TOP) Analog monitor Analog input (B-Y) Analog input (R-Y) Analog input (Y) Ground for analog circuits Ground for digital circuits Multiplexer control (Y) Multiplexer control (R-Y) Multiplexer control (B-Y) Clamp pulse (Y) C

Features

Maximum conversion rate: 20 MSPS (min. ) Linearity error: ±0.5 LSB (typ. ) Differential linearity error: ±0.5 LSB (typ. ) Power supply voltage: 5.0 ±0.5 V Power consumption: 100 mW (typ. ) Built-in 3-input multiplexer, clamp circuit, and reference voltage power supply.
