MN13802, MN1380 - (MN138x) CMOS LSIs for Voltage Detection

Panasonic Semiconductor

The MN13802 by Panasonic Semiconductor is a (MN138x) CMOS LSIs for Voltage Detection. Below is the official datasheet preview.

Datasheet Details

Part number	MN13802, MN1380
Manufacturer	Panasonic Semiconductor
File Size	157.38 KB
Description	(MN138x) CMOS LSIs for Voltage Detection
Datasheet	MN1380_PanasonicSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MN13802, MN1380. Please refer to the document for exact specifications by model.

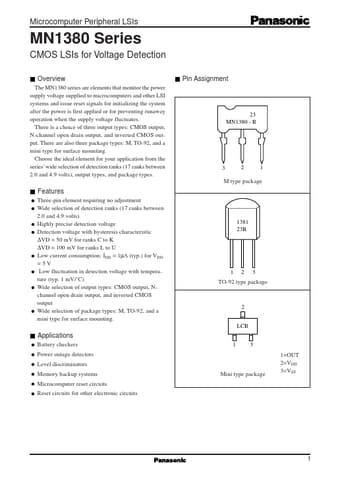

Additional preview pages of the MN13802 datasheet.

Pin No. 0.3 to VDD +0.3 20 to +70 55 to +125 Unit V V ˚C ˚C Recommended Operating Conditions Parameter Power supply voltage Symbol VDD

Three-pin element requiring no adjustment Wide selection of detection ranks (17 ranks between 2.0 and 4.9 volts) Highly precise detection voltage Detection voltage with hysteresis characteristic ∆VD = 50 mV for ranks C to K ∆VD = 100 mV for ranks L to U Low current consumption: IDD = 1µA (typ. ) for VDD =5V Low fluctuation in detection voltage with temperature (typ. 1 mV/˚C) Wide selection of output types: CMOS output, Nchannel open drain output, and inverted CMOS output Wide selection of package.
