MIP0224SY - Silicon MOS IC

Name: MIP0224SY
SKU: MIP0224SY-188007

Panasonic Semiconductor

The MIP0224SY by Panasonic Semiconductor is a Silicon MOS IC. Below is the official datasheet preview.

Datasheet Details

Part number	MIP0224SY
Manufacturer	Panasonic Semiconductor
File Size	34.16 KB
Description	Silicon MOS IC
Datasheet	MIP0224SY-PanasonicSemiconductor.pdf

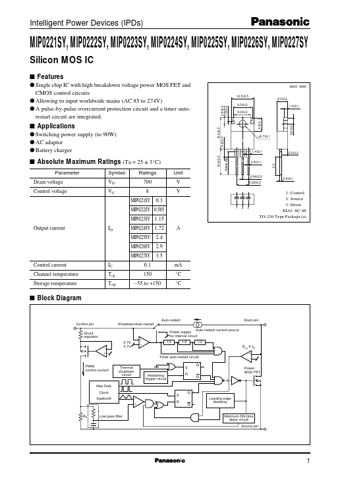

Additional preview pages of the MIP0224SY datasheet.

q Single chip IC with high breakdown voltage power MOS FET and CMOS control circuits q Allowing to input worldwide mains (AC 85 to 274V) q A pulse-by-pulse overcurrent protection circuit and a timer autorestart circuit are integrated. unit: mm 10.5±0.5 4.5±0.2 2.8±0.2 1.5±0.2 9.5±0.2 8.0±0.2 6.8±0.1 1.4±0.1 q Switching power supply (to 90W) q AC adaptor q Battery charger 15.4±0.3 4.2±0.3 φ3.7±0.1 1.4±0.1 13.5±0.5 Solder Dip 2.5±0.2 Parameter Drain voltage Control voltage Symbol VD VC R.
