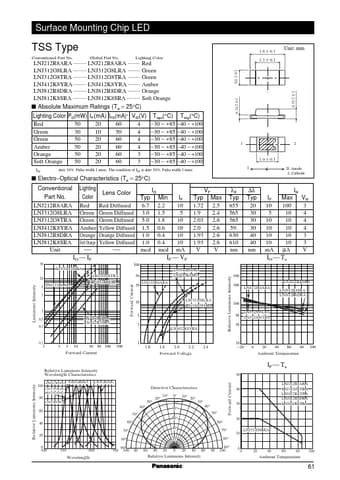

Surface Mounting Chip LED
TSS Type
Conventional Part No. Global Prat No. Lighting Color
1.6 ± 0.1
Unit: mm
s Absolute Maximum Ratings (Ta = 25°C) Lighting Color PD(mW) IF(mA) IFP(mA)∗ VR(V) Red 50 20 60 4 Green 30 10 50 4 Green 50 20 60 4 Amber 50 20 60 4 Orange 50 20 60 3 Soft Orange 50 20 60 3
IFP
Topr(°C) −30 ∼ +85 −30 ∼ +85 −30 ∼ +85 −30 ∼ +85 −30 ∼ +85 −30 ∼ +85
Tstg(°C) −40 ∼ +100 −40 ∼ +100 −40 ∼ +100 −40 ∼ +100 −40 ∼ +100 −40 ∼ +100
0.18 ± 0.1
1
1.0 ± 0.1 1 2 1: Anode 2: Cathode
duty 10% Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec
s Electro−Optical Characteristics (Ta = 25°C) Conventional Part No.
LNJ812K8SRA Datasheet
