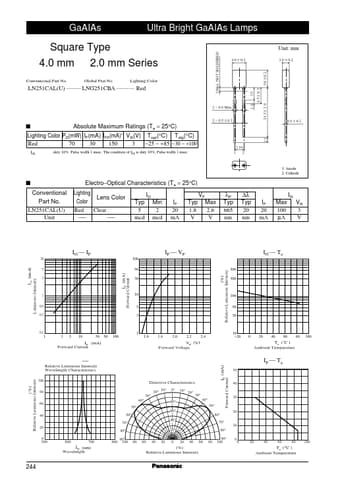

GaAIAs
Ultra Bright GaAIAs Lamps
Unit: mm
2 Max. NOT SOLDERED
Square Type 4.0 mm 2.0 mm Series
Conventional Part No. Global Prat No. Lighting Color
4.0 ± 0.2
5.0 ± 0.2
2.0 ± 0.2
4.5 ± 0.3 14.5 ± 1.0
LN251CAL(U) ·········· LNG251CBA ············ Red
2 − 0.8 Max 2 − 0.5 ± 0.1
1.0
3.5
s
Absolute Maximum Ratings (Ta = 25°C)
0.5 ± 0.1
Lighting Color PD(mW) IF(mA) IFP(mA)∗ VR(V) Topr(°C) Tstg(°C) Red 70 150 30 3 −25 ∼ +85 −30 ∼ +100
IFR duty 10% Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec
1
2.54 2
1.5
1: Anode 2: Cathode
s Conventional Part No. LN251CAL(U) Unit
Electro−Optical Characteristics (Ta = 25°C) Lighting Lens Color Color Red Clear − − IO Typ 5 mcd Min 2 mcd IF 20 mA Typ 1.8 V VF Max 2.
