C2634 - 2SC2634

Panasonic Semiconductor

📥 Download Datasheet

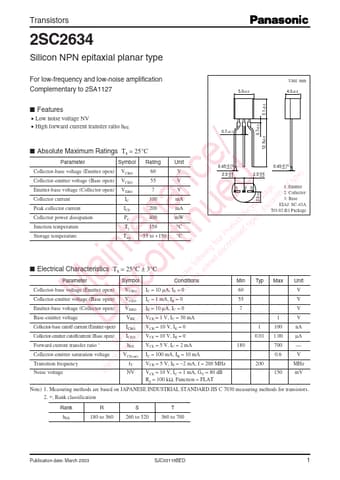

C2634 Datasheet Preview — Preview of C2634 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	C2634
Manufacturer	Panasonic ↗ Semiconductor
File Size	220.10 KB
Description	2SC2634
Datasheet	C2634-PanasonicSemiconductor.pdf

C2634 Product details

Features

Low noise voltage NV.
High forward current transfer ratio hFE 0.7±0.1.
Absolute Maximum Ratings Ta = 25°C 0.7±0.2 12.9±0.5 / Parameter Symbol Rating Unit e ) Collector-base voltage (Emitter open) VCBO 60 V c type Collector-emitter voltage (Base open) VCEO 55 V n d ge. ed Emitter-base voltage (Collector open) VEBO 7 2.3±0.2 V le sta ntinu Collector current IC 100 mA a e cyc isco Peak collector current ICP 200 mA life d, d Collector power dissipati.
