C1568 2SC1568

C1568 Description

Power Transistors 2SC1568 Silicon NPN epitaxial planar type For low-voltage type medium output power amplification Complementary to 2SA0900 φ 3.16±0.

C1568 Features

* 3.05±0.1
* Low collector-emitter saturation voltage VCE(sat)
* Satisfactory operation performances and high efficiency with a lowvoltage power supply
* TO-126B package which incorporates a unique construction enabling installation to the heat sink without using insulation

📥 Download Datasheet

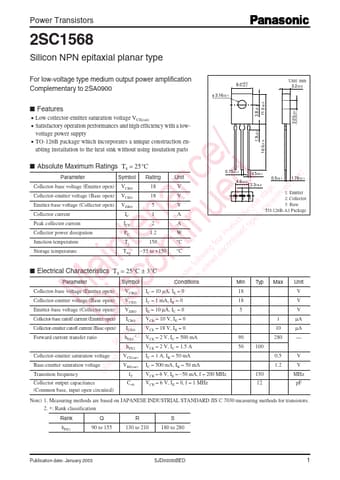

Preview of C1568 PDF
datasheet Preview Page 2 datasheet Preview Page 3
