AN7164N Datasheet PDF - Panasonic Semiconductor BTL 47W Audio Power Amplifier Specs

AN7164N - BTL 47W Audio Power Amplifier

Datasheet Summary

Description

Pin No.

1 2 3 4 5 6 Pin Name Ripple Filter NFB Ch.2 GND (Input) NFB Ch.1 Input Stand-by Pin No.

Features

High output power.
Low distortion, low noise.
Low shock noise from power ON/OFF operation.
Incorporates stand-by circuits.
Incorporates protection circuits (Temperature, Overcurrent, Load Short, Output.
GND Short) R1.8 0.6 1 0.35.
0.05 1.2±0.1 3.5±0.3 10 7 + 0.1 12-Lead SIP Package with Fin (Power Type) (HSIP012-P-000A) s Pin.

Datasheet Details

Part number	AN7164N
Manufacturer	Panasonic Semiconductor
File Size	54.59 KB
Description	BTL 47W Audio Power Amplifier
Datasheet	AN7164N Datasheet
Additional preview pages of the AN7164N datasheet.

📁 Similar Datasheet

AN7161N - Silicon Monolithic Bipolar (Matsushita)

AN7105 - Single Chip Stereo Pre Amplifier / Power Amplifier Circuit (Panasonic)

AN7106K - Single Chip Stereo Pre-Amplifier / Power Amplifier Circuit (Panasonic)

AN7108 - 1-Chip Stereo Pre-Amplifier / Power Amplifier Circuit (Matsushita Electric)

AN7109S - 2-Channel Recording / Playback Pre / Power Amplifier IC (Panasonic)

AN7114 - (AN7110 - AN7115) Linear Monolithic Integrated Circuits (Matsushita Electric)

AN7115 - (AN7110 - AN7115) Linear Monolithic Integrated Circuits (Matsushita Electric)

AN7117 - Low Power Consumption 1W Audio Power Amplifier (Panasonic)

AN714 - 4.0 5x7 Dot Matrix Display (Marktech Corporate)

AN7141 - 1W Audio Power Amplifier (Panasonic)

Full PDF Text Transcription

Click to expand full text

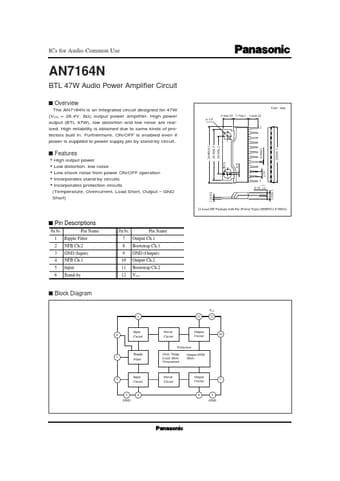

ICs for Audio Common Use AN7164N BTL 47W Audio Power Amplifier Circuit s Overview The AN7164N is an integrated circuit designed for 47W (VCC = 26.4V, 8Ω) output power amplifier. High power output (BTL 47W), low distortion and low noise are realized. High reliability is obtained due to same kinds of protectors built in. Furthermore, ON/OFF is enabled even if power is supplied to power supply pin by stand-by circuit. Unit : mm 5.9±0.25 7.7±0.3 7.8±0.25 ø 3.6 12 29.96±0.3 28.0±0.3 20.0±0.2 0.6±0.1 s Features • High output power • Low distortion, low noise • Low shock noise from power ON/OFF operation • Incorporates stand-by circuits • Incorporates protection circuits (Temperature, Overcurrent, Load Short, Output – GND Short) R1.8 0.6 1 0.35 – 0.05 1.2±0.1 3.5±0.3 10 7 + 0.
