AN6263N - Pause Detection Circuits

Panasonic Semiconductor

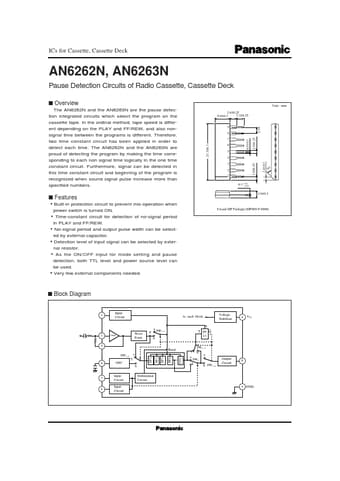

AN6263N Datasheet Preview — Preview of AN6263N PDF

Datasheet Details

Part number	AN6263N
Manufacturer	Panasonic ↗ Semiconductor
File Size	58.96 KB
Description	Pause Detection Circuits
Datasheet	AN6263N_PanasonicSemiconductor.pdf

AN6263N Product details

Description

Pin No. Mode Reference Oscillation ICs for Cassette, Cassette Deck Pin 7 L H L H Pin 8 L L H H Mode OFF FF/REW PLAY OFF s Absolute Maximum Ratings (Ta=25˚C) Parameter Supply Voltage Supply Current Power Dissipation Operating Ambient Temperature Storage Temperature ICC PD Symbol VCC AN6262N AN6263N AN6262N AN6263N Topr Tstg Rating 16 21 25 336 475 25 ~ + 75

Features

Built-in protection circuit to prevent mis-operation when power switch is turned ON. Time-constant circuit for detection of no-signal period in PLAY and FF/REW.
No-signal period and output pulse width can be selected by external capacitor.
Detection level of input signal can be selected by external resistor.
As the ON/OFF input for mode setting and pause detection, both TTL level and power source level can be used.
Very few external components ne.
