Name: 6612S
SKU: 6612S-604525

Panasonic Semiconductor

📥 Download Datasheet

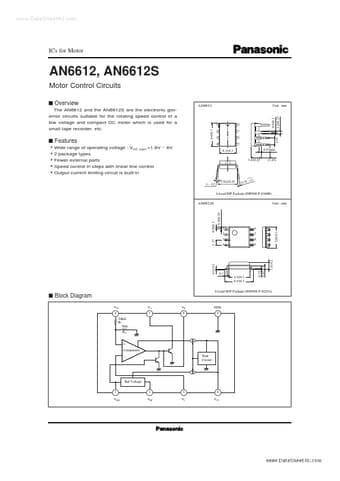

6612S Datasheet Preview — Preview of 6612S PDF

Datasheet Details

Part number	6612S
Manufacturer	Panasonic Semiconductor
File Size	61.68 KB
Description	AN6612S
Datasheet	6612S_PanasonicSemiconductor.pdf

6612S Product details

Description

Pin No. 20 ~ + 75 40 ~ +150 40 ~ +125 Unit V mA mW ˚C ˚C Operating Ambient Temperature Storage Temperature s Electrical Characteristics (Ta = 25˚C) Parameter Suppl

Features

Wide range of operating voltage : VCC (opr) =1.8V ~ 8V.
2 package types.
Fewer external parts.
Speed control in steps with linear fine control.
Output current limiting circuit is built-in 5 0.51min. 3.8±0.25 (3.45) 3 ~ 15˚ 7.62±0.25 0.15.
+ 0.1 0.05 8-Lead DIP Package (DIP008-P-0300B) AN6612S 0.4±0.25 Unit : mm 0.6±0.3 1 2 3 4 8 7 6 5 5.0±0.3 0.15 0.65 1.5±0.2 0.1±0.1 1.27 0.3 4.2±0.3 6.5±0.3 8-Lead SOP Package (SOP008-P-022.
