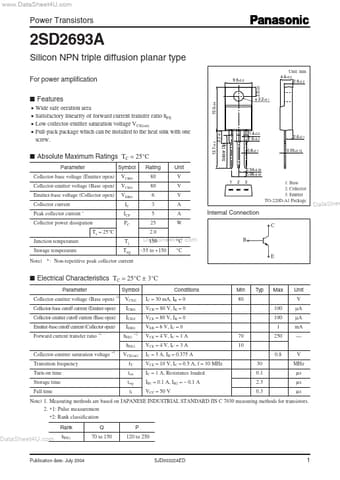

2SD2693A - Silicon NPN triple diffusion planar type Transistor

Panasonic Semiconductor

Datasheet Details

Part number	2SD2693A
Manufacturer	Panasonic Semiconductor
File Size	116.87 KB
Description	Silicon NPN triple diffusion planar type Transistor
Datasheet	2SD2693A_PanasonicSemiconductor.pdf

s.
Wide safe oeration area.
Satisfactory linearity of forward current transfer ratio hFE.
Low collector-emitter saturation voltage VCE(sat).
Full-pack package which can be installed to the heat sink with one screw. 9.9±0.3 3.0±0.5 4.6±0.2 2.9±0.2 13.7±0.2 4.2±0.2 Solder Dip 15.0±0.5 φ 3.2±0.1 1.4±0.2 1.6±0.2 0.8±0.1 2.6±0.1.
Absolute Maximum Ratings TC = 25°C Parameter Collector-base voltage (Emitter open) Collector-emitter voltage (Base open) Emi.
