2SC1953 - Power Transistors

Features

  • 05±0.1.
  • High collector-emitter voltage (Base open) VCEO.
  • Small collector output capacitance (Common base, input open cir- 1.9±0.1 16.0±1.0 cuited) Cob.
  • A complementary pair with 2SA0914, is optimum for the pre-driver stage of a 60 W to 100 W output amplifier /.
  • TO-126B package which requires no insulation plate for installa- tion to the heat sink ce type).
  • Absolute Maximum Ratings Ta = 25°C n d tage. ued Parameter Symbol Rating Unit le s ontin.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC1953 NPN Transistor INCHANGE
2SC1953 SILICON POWER TRANSISTOR SavantIC
2SC1955 SILICON NPN TRANSISTOR Toshiba
2SC1957 SILICON NPN TRANSISTOR BLUE ROCKET ELECTRONICS
2SC1959 PNP Transistor Toshiba Semiconductor

Other Datasheets by Panasonic

Part Number Description
2SC1973 NPN Transistor
2SC1980 NPN Transistor
2SC1047 Silicon NPN Transistor
2SC1215 Silicon NPN Transistor
2SC1226 Silicon NPN epitaxial planar type Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

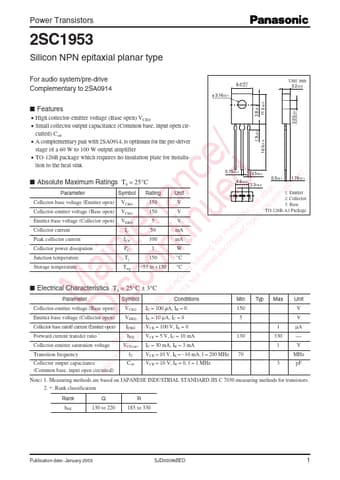

Power Transistors 2SC1953 Silicon NPN epitaxial planar type For audio system/pre-drive Complementary to 2SA0914 φ 3.16±0.1 8.0+–00..15 Unit: mm 3.2±0.2 3.8±0.3 11.0±0.5 ■ Features 3.05±0.1 • High collector-emitter voltage (Base open) VCEO • Small collector output capacitance (Common base, input open cir- 1.9±0.1 16.0±1.0 cuited) Cob • A complementary pair with 2SA0914, is optimum for the pre-driver stage of a 60 W to 100 W output amplifier / • TO-126B package which requires no insulation plate for installa- tion to the heat sink ce type) ■ Absolute Maximum Ratings Ta = 25°C n d tage.
