2SB1322A - Silicon PNP Transistor

Features

  • Allowing supply with the radial taping 6.9±0.1 1.05 2.5±0.1 ±0.05 (1.45) 0.8 0.15 0.7 4.0 0.65 max. 1.0 1.0 0.2 Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation.
  • Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Rating.
  • 60.
  • 50.
  • 5.
  • 1.5.
  • 1 1 150.
  • 55 to +150 Unit V V V A A W °C °C 1 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1322A Plastic-Encapsulated Transistors TRANSYS
2SB1322A PNP Plastic Encapsulated Transistor SeCoS
2SB1323 Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SB1323 PNP Epitaxial Planar Silicon Transistors Guangdong Kexin
2SB1324 PNP / NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device

Other Datasheets by Panasonic

Part Number Description
2SB1322 Power Transistors
2SB1320 Silicon PNP Transistor
2SB1320A Silicon PNP Transistor
2SB1321A Silicon PNP Transistor
2SB1317 Silicon PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

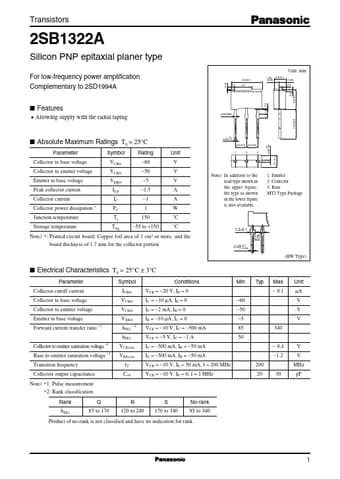

Transistors 2SB1322A Silicon PNP epitaxial planer type Unit: mm For low-frequency power amplification Complementary to 2SD1994A I Features • Allowing supply with the radial taping 6.9±0.1 1.05 2.5±0.1 ±0.05 (1.45) 0.8 0.15 0.7 4.0 0.65 max. 1.0 1.0 0.2 Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation * Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Rating −60 −50 −5 −1.5 −1 1 150 −55 to +150 Unit V V V A A W °C °C 1 2 3 0.45−0.05 +0.1 I Absolute Maximum Ratings Ta = 25°C 0.45−0.05 2.5±0.5 2.5±0.5 +0.1 Note) In addition to the lead type shown in the upper figure, the type as shown in the lower figure is also available.
