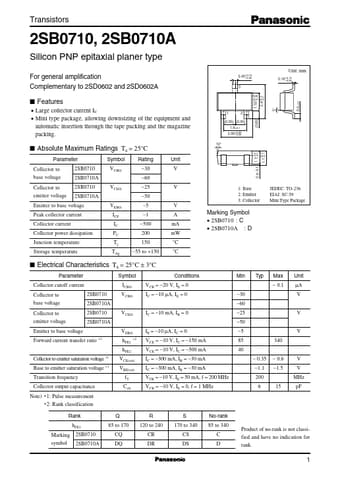

Transistors
2SB0710, 2SB0710A
Silicon PNP epitaxial planer type
Unit: mm
For general amplification Complementary to 2SD0602 and 2SD0602A I Features
• Large collector current IC • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing.
1
0.40+0.10 –0.05 3
0.16+0.10 –0.06
1.50+0.25 –0.05
2.8+0.2 –0.3
2
(0.95) (0.95) 1.9±0.1 2.90+0.20 –0.05 10°
1.1+0.2 –0.1
Parameter Collector to base voltage Collector to emitter voltage 2SB0710 2SB0710A 2SB0710 2SB0710A
Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg
Rating − 30 − 60 − 25 − 50 −5 −1 −500 200 150 −55 to +150
Unit V
V
1: Base 2: Emitter 3: Collector
0 to 0.1
1.1+0.3 –0.1
I Absolute Maximum Ratings Ta = 25°C
(0.
