2SA1309A - Silicon PNP Transistor

Panasonic Semiconductor

Datasheet Details

Part number	2SA1309A
Manufacturer	Panasonic Semiconductor
File Size	35.71 KB
Description	Silicon PNP Transistor
Datasheet	2SA1309A_PanasonicSemiconductor.pdf

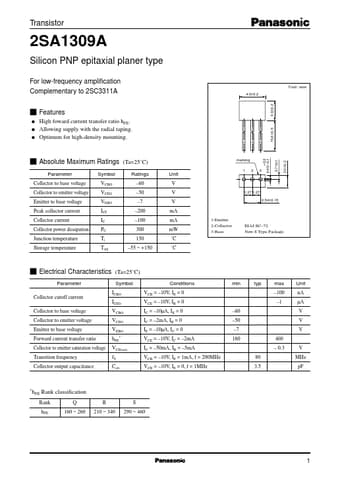

q q q Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg Ratings.
60.
50.
7.
200.
100 300 150.
55 ~ +150 Unit V V V mA mA mW ˚C ˚C 1:Emitter 2:Collector 3:Base 1 2 3 1.27 1.27 2.54±0.15 EIAJ:SC.
72 New S Type Package s Electrical Characteristics P.
