2SA1123 - Silicon NPN epitaxial planer type Transistor

Name: 2SA1123
SKU: 2SA1123-73286

Panasonic Semiconductor

The 2SA1123 by Panasonic Semiconductor is a Silicon NPN epitaxial planer type Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1123
Manufacturer	Panasonic Semiconductor
File Size	36.63 KB
Description	Silicon NPN epitaxial planer type Transistor
Datasheet	2SA1123_PanasonicSemiconductor.pdf

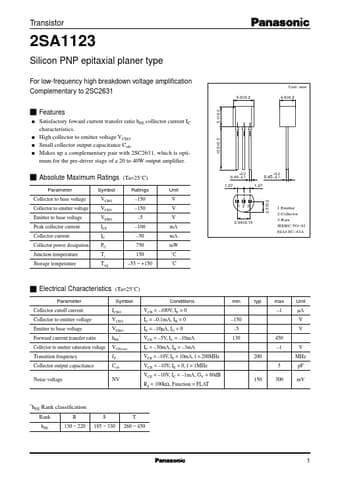

Additional preview pages of the 2SA1123 datasheet.

q q q q Satisfactory foward current transfer ratio hFE collector current IC characteristics. High collector to emitter voltage VCEO. Small collector output capacitance Cob. Makes up a complementary pair with 2SC2631, which is optimum for the pre-driver stage of a 20 to 40W output amplifier. (Ta=25˚C) Ratings.
150.
150.
5.
100.
50 750 150.
55 ~ +150 Unit 13.5±0.5 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter.
