UF463443G - Lithium Ion

Name: UF463443G
SKU: UF463443G-831426

Panasonic Battery

The UF463443G by Panasonic Battery is a Lithium Ion. Below is the official datasheet preview.

Datasheet Details

Part number	UF463443G
Manufacturer	Panasonic Battery
File Size	513.59 KB
Description	Lithium Ion
Datasheet	UF463443G-PanasonicBattery.pdf

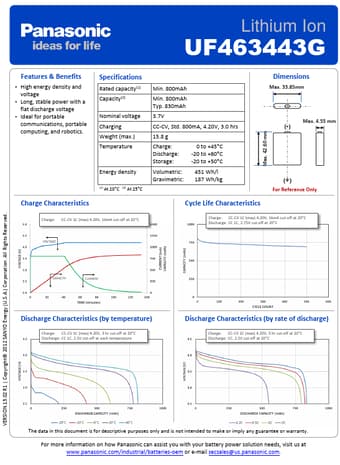

Additional preview pages of the UF463443G datasheet.

& Benefits.
High energy density and voltage.
Long, stable power with a flat discharge voltage.
Ideal for portable communications, portable computing, and robotics. Lithium Ion Dimensions Specifications Rated capacity(1) Capacity(2) Nominal voltage Charging Weight (max. ) Temperature Min. 800mAh Min. 800mAh Typ. 830mAh 3.7V CC-CV, Std. 800mA, 4.20V, 3.0 hrs 15.8 g Charge: Discharge: Storage: Volumetric: Gravimetric: 0 to +45°C -20 to +60°C -20 to +50°C 451 Wh/l 187 Wh/.
