P4SMAFJ45A - Surface Mount Transient Voltage Supressor Power 400W

Download the P4SMAFJ45A datasheet PDF. This datasheet also covers the P4SMAFJ variant, as both devices belong to the same surface mount transient voltage supressor power 400w family and are provided as variant models within a single manufacturer datasheet.

Features

  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P4SMAFJ_PanJitInternational.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P4SMAFJ45A
Manufacturer PanJit International
File Size 547.23 KB
Description Surface Mount Transient Voltage Supressor Power 400W
Datasheet download datasheet P4SMAFJ45A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
P4SMAFJ45A Surface mount transient voltage suppressor Prisemi
P4SMAFJ45A Surface Mount Transient Voltage Suppressors SEMTECH
P4SMAFJ45A Surface mount transient voltage suppressor BLUE ROCKET ELECTRONICS
P4SMAFJ45A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR MIC
P4SMAFJ45A Surface mount transient voltage suppressor power 400 watts Jingdao Microelectronics

Other Datasheets by PanJit International

Part Number Description
P4SMAFJ40A Surface Mount Transient Voltage Supressor Power 400W
P4SMAFJ43A Surface Mount Transient Voltage Supressor Power 400W
P4SMAFJ48A Surface Mount Transient Voltage Supressor Power 400W
P4SMAFJ Surface Mount Transient Voltage Supressor Power 400W
P4SMAFJ100A Surface Mount Transient Voltage Supressor Power 400W

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

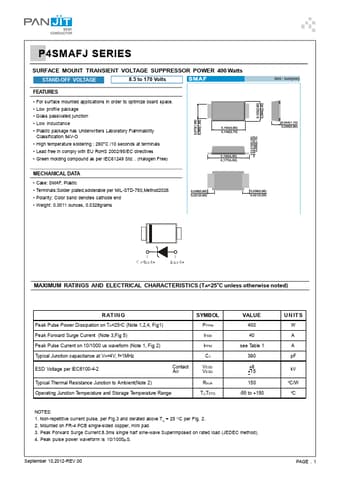

P4SMAFJ SERIES SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 400 Watts STAND-OFF VOLTAGE FEATURES • For surface mounted applications in order to optimize board space. • Low profile package • Glass passivated junction • Low inductance • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • High temperature soldering : 260°C /10 seconds at terminals • Lead free in comply with EU RoHS 2002/95/EC directives • Green molding compound as per IEC61249 Std. . (Halogen Free) 8.5 to 170 Volts MECHANICAL DATA • Case: SMAF, Plastic • Terminals:Solder plated,solderable per MIL-STD-750,Method2026 • Polarity: Color band denotes cathode end • Weight: 0.0011 ounces, 0.0328grams www.DataSheet.
