UF801F, UF800F - (UF800F - UF808F) ISOLATION ULTRAFAST SWITCHING RECTIFIER

Name: UF801F
SKU: UF801F-576728

Pan Jit International

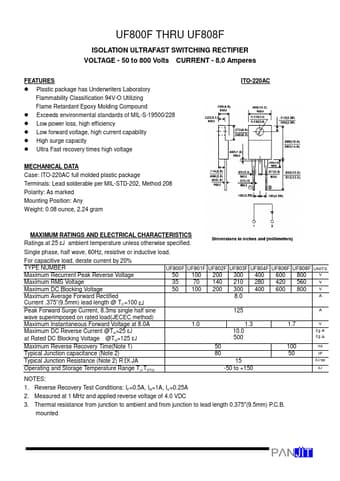

The UF801F by Pan Jit International is a (UF800F - UF808F) ISOLATION ULTRAFAST SWITCHING RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

UF801F (UF800F - UF808F) ISOLATION ULTRAFAST SWITCHING RECTIFIER by Pan Jit International - Datasheet Preview — Official preview page of the **UF801F** (UF800F - UF808F) ISOLATION ULTRAFAST SWITCHING RECTIFIER datasheet (Pan Jit International).

Datasheet Details

Part number	UF801F, UF800F
Manufacturer	Pan Jit International
File Size	80.26 KB
Description	(UF800F - UF808F) ISOLATION ULTRAFAST SWITCHING RECTIFIER
Datasheet	UF800F_PanJitInternational.pdf
Note	This datasheet PDF includes multiple part numbers: UF801F, UF800F. Please refer to the document for exact specifications by model.
Additional preview pages of the UF801F datasheet.

UF801F Product details

Features

l Plastic package has Underwriters Laboratory Flammability Classification 94V-O Utilizing Flame Retardant Epoxy Molding Compound l Exceeds environmental standards of MIL-S-19500/228 l Low power loss, high efficiency l Low forward voltage, high current capability l High surge capacity l Ultra Fast recovery times high voltage.
