UF3010 - ULTRAFAST SWITCHING RECTIFIER

Download the UF3010 datasheet PDF. This datasheet also covers the UF300 variant, as both devices belong to the same ultrafast switching rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • l Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound l Void-free Plastic in DO-201AD package l 3.0 ampere operation at TA=55 ¢J with no thermal runaway l l Exceeds environmental standards of MIL-S-19500/228 Ultra fast switching for high efficiency DO-201AD.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF300_PanJitInternational.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
UF3010 3.0 AMP HIGH EFFICIENCY RECTIFIERS Bytes
UF3010 (UF300 - UF3010) ULTRAFAST SWITCHING RECTIFIER TRSYS
UF3010G (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER YS
UF3010PT Super Fast Recovery Rectifier CumSumI
UF301 3A Leaded Type Ultra Fast Rectifiers CITC

Other Datasheets by PanJit Semiconductor

Part Number Description
UF301 ULTRAFAST SWITCHING RECTIFIER
UF300 ULTRAFAST SWITCHING RECTIFIER
UF302 ULTRAFAST SWITCHING RECTIFIER
UF304 ULTRAFAST SWITCHING RECTIFIER
UF306 ULTRAFAST SWITCHING RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

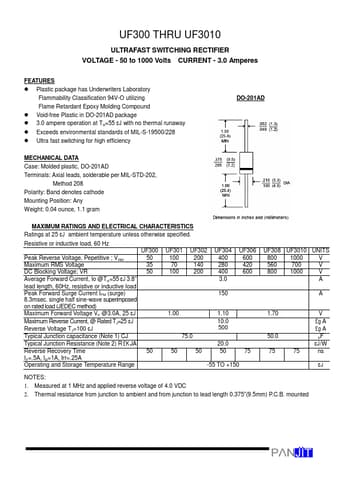

UF300 THRU UF3010 ULTRAFAST SWITCHING RECTIFIER VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes FEATURES l Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound l Void-free Plastic in DO-201AD package l 3.0 ampere operation at TA=55 ¢J with no thermal runaway l l Exceeds environmental standards of MIL-S-19500/228 Ultra fast switching for high efficiency DO-201AD MECHANICAL DATA Case: Molded plastic, DO-201AD Terminals: Axial leads, solderable per MIL-STD-202, Method 208 Polarity: Band denotes cathode Mounting Position: Any Weight: 0.04 ounce, 1.1 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ¢J ambient temperature unless otherwise specified.
