SX32 - (SX32 - SX39) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SX32 Description

DATA SHEET SX32~SX39 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE- 20 to 90 Volts CURRENT- 3.0 Amperes SMA / DO-214AC Unit: inch ( mm ) .

SX32 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SX32 Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier. majority carrier conduction
* Low power loss,high efficiency
* High surge capacity
* For use in low voltage high frequency inverters, free wheeling, and polarity protection ap

📥 Download Datasheet

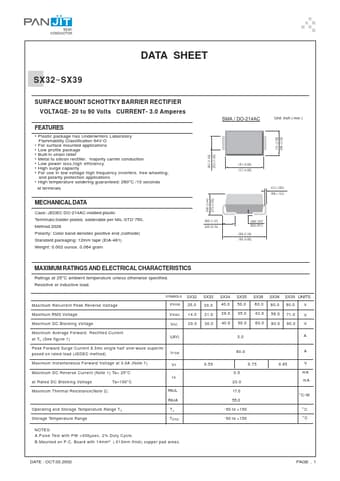

Preview of SX32 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SX32
Manufacturer
Pan Jit International
File Size
43.40 KB
Datasheet
SX32_PanJitInternational.pdf
Description
(SX32 - SX39) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
