SVM1045VA - ULTRA LOW VF SCHOTTKY RECTIFIER

Features

  • Ideal for automated placement.
  • Ultra low forward voltage drop, low power loss.
  • High efficiency Operation.
  • Low thermal resistance.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SVM1045V LOW VF SCHOTTKY RECTIFIER Pan Jit
SVM1602BSFB-1 Display ETC
SVM7561 CMOS MELODY Epson
SVM7860C CMOS Melody IC Seiko
SVM7860C Melody IC Epson

Other Datasheets by PanJit Semiconductor

Part Number Description
SVM1045V2 LOW VF SCHOTTKY RECTIFIER
SVM1060XB LOW VF SCHOTTKY RECTIFIER
SVM1550U Low VF Schottky Rectifier
SVM1550V ULTRA LOW VF SCHOTTKY RECTIFIER
SVM1550VB ULTRA LOW VF SCHOTTKY RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

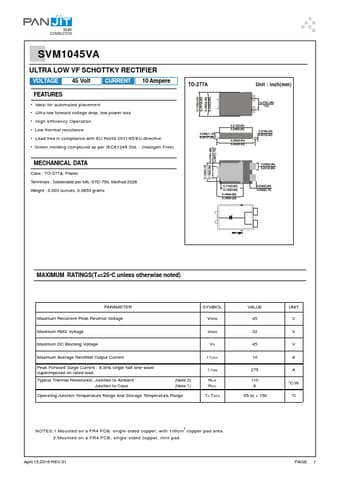

SVM1045VA ULTRA LOW VF SCHOTTKY RECTIFIER VOLTAGE 45 Volt CURRENT 10 Ampere FEATURES • Ideal for automated placement • Ultra low forward voltage drop, low power loss • High efficiency Operation • Low thermal resistance • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA Case : TO-277A, Plastic Terminals : Solderable per MIL-STD-750, Method 2026 Weight : 0.003 ounces, 0.0855 grams TO-277A Unit : inch(mm) MAXIMUM RATINGS(TA=25oC unless otherwise noted) PARAMETER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Rectified Output Current Peak Forward Surge Current : 8.
