SS14W, SS12W, (SS12W - SS100W) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

www.DataSheet.co.kr SS12W SERIES SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 20 to 100 Volts CURRENT 1.0 Ampere .

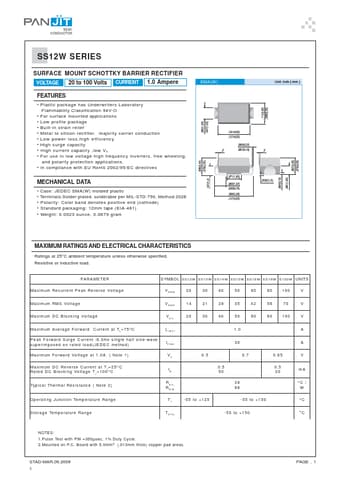

datasheet Preview Page 1 from Datasheet4u.com

SS12W_PanJitInternational.pdf

SS14W Datasheet Preview — This datasheet PDF includes multiple part numbers: SS14W, SS12W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS14W, SS12W

Manufacturer:

Pan Jit International

File Size:

180.17 KB

Description:

(SS12W - SS100W) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SS14W, SS12W.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier. majority carrier conduction
* Low power loss,high efficiency
* High surge capacity
* High current capacity ,low V F
* For use in low voltage high frequency inverters,
