SD860YT - (SD820YT - SD8100YT) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Download the SD860YT datasheet PDF. This datasheet also covers the SD880YT variant, as both devices belong to the same (sd820yt - sd8100yt) surface mount schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD880YT_PanJitInternational.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SD860YT
Manufacturer PanJit Semiconductor
File Size 57.82 KB
Description (SD820YT - SD8100YT) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet SD860YT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD860 SCHOTTKY BARRIER RECTIFIER HITANO
SD860 (SD820 - SD8100) 8 Amp Schottky Barrier Rectifier Microsemi
SD860 SCHOTTKY BARRIER RECTIFIERS Diodes Incorporated
SD860 Schottky Barrier Rectifier Dc Components
SD860CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS UPM

Other Datasheets by PanJit Semiconductor

Part Number Description
SD860YS (SD820YS - SD8100YS) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SD860CS (SD820CS - SD8100CS) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SD860CT (SD820CT - SD8150CT) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SD860T (SD820T - SD8150T) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SD8100CS (SD820CS - SD8100CS) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription

Click to expand full text

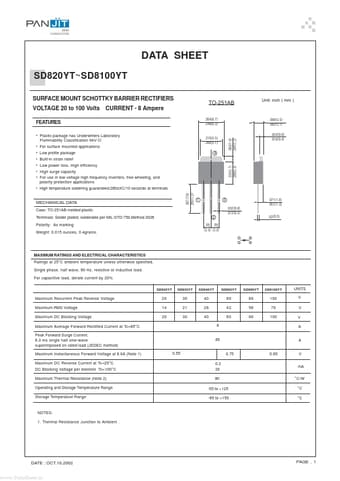

DATA SHEET SD820YT~SD8100YT SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications • Low profile package • Built-in strain relief • High surge capacity • For use in low voltage high frequency inverters, free wheeling, and polarity protection applications • High temperature soldering guaranteed:260¢XC/10 seconds at terminals .307(7.8) .283(7.2) .225(5.7) .209(5.3) TO-251AB .264(6.7) .248(6.3) .216(5.5) .200(5.1) 4 Unit: inch ( mm ) CURRENT - 8 Ampere .098(2.5) .082(2.1) .024(0.6) .016(0.4) • Low power loss, High efficiency .063(1.6) .047(1.
