SD1060CT - SCHOTTKY BARRIER RECTIFIER

Download the SD1060CT datasheet PDF. This datasheet also covers the SD1020CT variant, as both devices belong to the same schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • For thorough hole.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD1020CT_PanJitInternational.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SD1060CS (SD1020CS - SD10100CS) 10A DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Won-Top Electronics
SD1060CS (SD1020CS - SD10100CS) 10a Dpak Surface Mount Schottky Barrier Rectifier Won Top Electronics
SD1060 (SD1020 - SD10100) TECHNICAL SPECIFICATIONS OF SCHOTTKY BARRIER RECTIFIER Dc Components
SD1060 RF & MICROWAVE TRANSISTORS Microsemi
SD1060D (SD1020D - SD10100D) TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER DIODE Dc Components

Other Datasheets by PanJit Semiconductor

Part Number Description
SD1060CS DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
SD1060YT SCHOTTKY BARRIER RECTIFIER
SD10100CS DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
SD10100CT SCHOTTKY BARRIER RECTIFIER
SD10100YT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

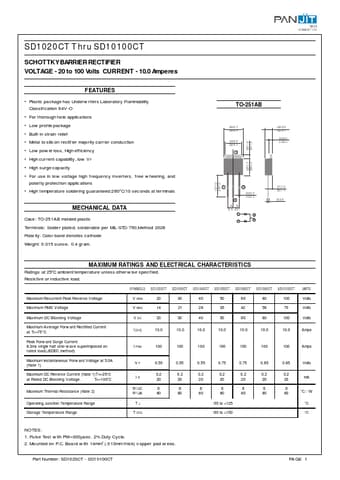

SD1020CT Thru SD10100CT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For thorough hole applications • Low profile package • Built-in strain relief • Metal to silicon rectifier majority carrier conduction • Low power loss, High efficiency • High current capability, low VF • High surge capacity .307(7.8) .283(7.2) TO-251AB .264(6.7) .248(6.3) .216(5.5) .200(5.1) 4 .098 (2.5 ) .082 (2.1 ) .024(0.6 ) .016(0.4 ) • For use in low voltage high frequency inverters, free wheeling, and polarity protection applications • High temperature soldering guaranteed:260° C/10 seconds at terminals .225(5.7) .209(5.3) .063(1.6) .047(1.2) 1 3 .032(0.8) .012(0.3) 2 .09 .09 (2.3) (2.
