SD1050CT, SD1020CT SCHOTTKY BARRIER RECTIFIER

SD1050CT Description

SD1020CT Thru SD10100CT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes .

SD1050CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SD1050CT Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability, low VF
* High surge capacity .307(7.8) .283(7.2) TO-251AB .264(6.7) .248(6.3) .216(5.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD1050CT, SD1020CT. Please refer to the document for exact specifications by model.

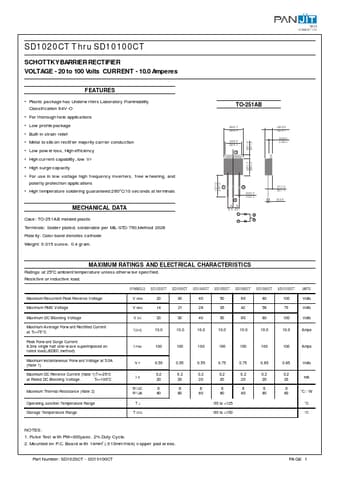

datasheet Preview Page 2

Datasheet Details

Part number
SD1050CT, SD1020CT
Manufacturer
Pan Jit International
File Size
331.93 KB
Datasheet
SD1020CT_PanJitInternational.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SD1050CT, SD1020CT.
Please refer to the document for exact specifications by model.
