SD1020YT SCHOTTKY BARRIER RECTIFIER

SD1020YT Description

SD1020YT Thru SD10100YT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes .

SD1020YT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SD1020YT Applications

* Low profile package
* Built-in strain relief ÁÅÈÄÁÇ ÁÅÈÉÄ ÈÁ Ç ÁÅÉÄ ÈÁÆ Ç ÁÂÃÄÅÁÇ ÁÂÅ Ä ÅÁ Ç TO-251AB ÁÂÅÉÄÂÁÈÇ
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability, low VF

📥 Download Datasheet

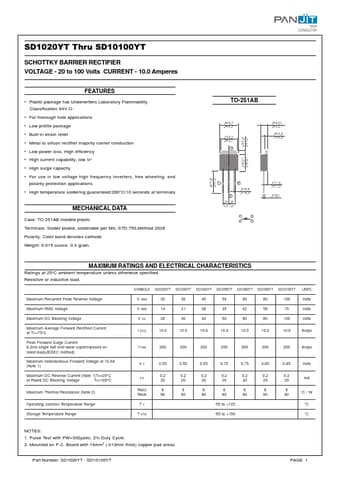

Preview of SD1020YT PDF
datasheet Preview Page 2

Datasheet Details

Part number
SD1020YT
Manufacturer
Pan Jit International
File Size
43.33 KB
Datasheet
SD1020YT_PanJitInternational.pdf
Description
SCHOTTKY BARRIER RECTIFIER
