SBA0540Q, SBA0520Q EXTREME LOW VF SCHOTTKY RECTIFIER

SBA0540Q Description

PSBA0520Q SERIES EXTREME LOW VF SCHOTTKY RECTIFIER Voltage 20~40 V Current 0.5 A .

SBA0540Q Features

* Ultra low forward voltage , Low Power loss
* Fast switching speed
* Surface mount package
* Ultra thin profile package for space constrained utilization
* Lead free in compliance with EU RoHS 2011/65/EU directive
* Green molding compound as per IEC61249 Std. . (Halogen Free

SBA0540Q Applications

* Low voltage rectification
* Reverse polarity protection
* Low power consumption applications Mechanical Data
* Case: DFN 2L, Plastic
* Terminals: Solderable per MIL-STD-750, Method 2026
* Approx. Weight: 0.00004 ounces, 0.0011 grams DFN 2L Unit: inch(mm) Maximum Ratings

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBA0540Q, SBA0520Q. Please refer to the document for exact specifications by model.

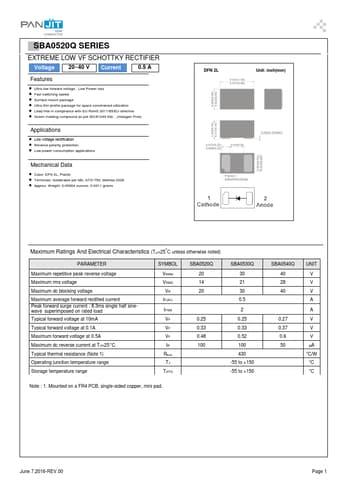

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBA0540Q, SBA0520Q
Manufacturer
Pan Jit International
File Size
251.71 KB
Datasheet
SBA0520Q-PanJitInternational.pdf
Description
EXTREME LOW VF SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBA0540Q, SBA0520Q.
Please refer to the document for exact specifications by model.
