SB3020FCT SCHOTTKY BARRIER RECTIFIERS

SB3020FCT Description

SB3020FCT SERIES SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 60 Volts CURRENT 30 Amperes .

SB3020FCT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* Low power loss, high efficiency.
* Low forward voltage, high current capability
* Hi

SB3020FCT Applications

* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: ITO-220AB full Molded plastic
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
* Polarity: As marked.
* Standard packaging: Any
* Weight: 0.055 ounces, 1.561

📥 Download Datasheet

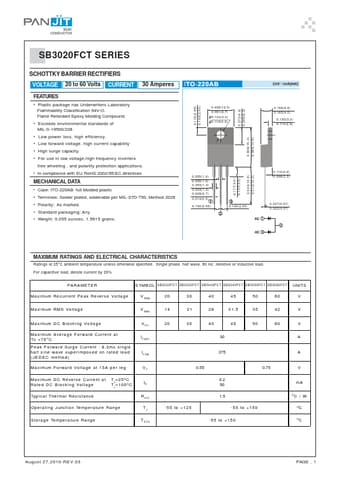

Preview of SB3020FCT PDF
datasheet Preview Page 2

Datasheet Details

Part number
SB3020FCT
Manufacturer
Pan Jit International
File Size
47.24 KB
Datasheet
SB3020FCT-PanJitInternational.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
