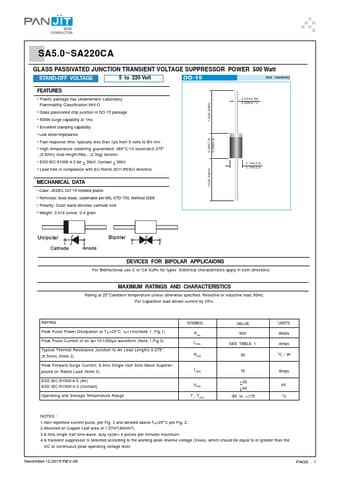

SA20CA, SA20 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Pan Jit International

Datasheet Details

Part number: SA20CA, SA20
Manufacturer: Pan Jit International
File Size: 79.71 KB
Datasheet: SA20-PanJitInternational.pdf
Description: GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Note: This datasheet PDF includes multiple part numbers: SA20CA, SA20.
Please refer to the document for exact specifications by model.

Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Glass passivated chip junction in DO-15 package.
500W surge capability at 1ms.
Excellent clamping capability.
Low zener impedance.
Fast response time: typically less than 1ps from 0 volts to BV min.
High temperature soldering guaranteed: 260°C/10 seconds/0.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
ESD IEC-61000-4-2 Air + 30kV, Contact + 3.
