RS1001FL SMALL SURFACE MOUNT FAST DIODES

RS1001FL Description

RS1001FL~RS1010FL SMALL SURFACE MOUNT FAST DIODES VOLTAGE 100 to 1000 Volts CURRENT 1.0 Amperes .

RS1001FL Applications

* Low profile package
* Ideal for automated placement
* Glass Passivated Chip Junction
* High temperature soldering : 260OC / 10 seconds at terminals
* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case : JEDEC SOD-123FL, Molded pl

📥 Download Datasheet

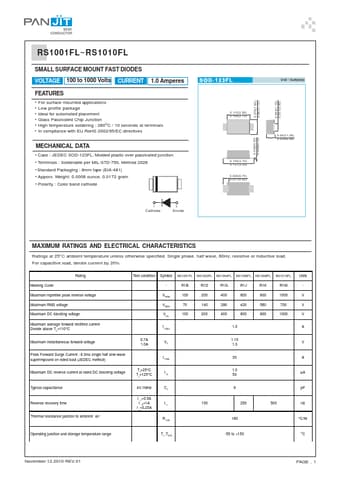

Preview of RS1001FL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS1001FL
Manufacturer
Pan Jit International
File Size
172.67 KB
Datasheet
RS1001FL-PanJitInternational.pdf
Description
SMALL SURFACE MOUNT FAST DIODES
