MBR8200D, MBR840D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

Name: MBR8200D
SKU: MBR8200D-1078598

Pan Jit International

The MBR8200D by Pan Jit International is a SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBR8200D, MBR840D
Manufacturer	Pan Jit International
File Size	115.28 KB
Description	SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
Datasheet	MBR840D-PanJitInternational.pdf
Note	This datasheet PDF includes multiple part numbers: MBR8200D, MBR840D. Please refer to the document for exact specifications by model.

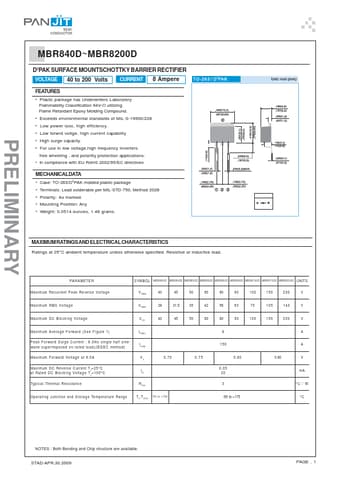

Additional preview pages of the MBR8200D datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
Exceeds environmental standards of MIL-S-19500/228.
Low power loss, high efficiency.
Low forwrd voltge, high current capability.
High surge capacity.
For use in low voltage,high frequency inverters free wheeling , and polarlity protection.
