ER2000CT - SUPERFAST RECOVERY RECTIFIER

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Low power loss, high efficiency.
  • Low forwrd voltge, high current capability.
  • High surge capacity.
  • Super fast recovery times, high voltage.
  • Epitaxial chip construction. .058(1.47) 50 to 600 Volts.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ER200 SUPERFAST RECOVERY RECTIFIERS Pan Jit International Inc.
ER200 SUPERFAST RECOVERY RECTIFIERS TRSYS
ER2004FCT Ultrafast Rectifier INCHANGE
ER2005 Super Fast Rectifier CITC
ER201 SUPERFAST RECOVERY RECTIFIERS(VOLTAGE - 50 to 600 Volts CURRENT - 2.0 Amperes) Pan Jit International Inc.

Other Datasheets by PanJit Semiconductor

Part Number Description
ER2000FCT SUPERFAST RECOVERY RECTIFIER
ER2001ACT SUPERFAST RECOVERY RECTIFIER
ER2001AFCT SUPERFAST RECOVERY RECTIFIER
ER2001CT SUPERFAST RECOVERY RECTIFIER
ER2001FCT SUPERFAST RECOVERY RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

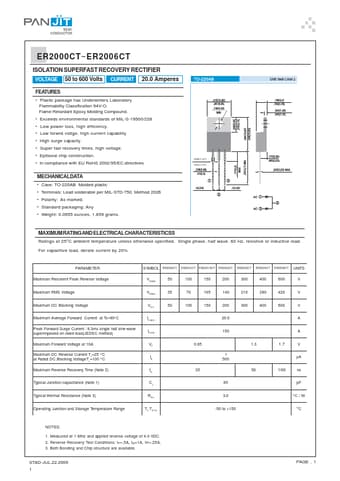

ER2000CT~ER2006CT ISOLATION SUPERFAST RECOVERY RECTIFIER VOLTAGE FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • Low power loss, high efficiency. • Low forwrd voltge, high current capability • High surge capacity. • Super fast recovery times, high voltage. • Epitaxial chip construction. .058(1.47) 50 to 600 Volts CURRENT 20.0 Amperes • In compliance with EU RoHS 2002/95/EC directives .042(1.07) MECHANICALDATA • Case: TO-220AB Molded plastic • Terminals: Lead solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Standard packaging: Any • Weight: 0.0655 ounces, 1.859 grams.
