BAV199W - LOW LEAKAGE SWITCHING DIODES

Download the BAV199W datasheet PDF. This datasheet also covers the BAV170W variant, as both devices belong to the same low leakage switching diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Suface mount package ideally suited for automatic insertion.
  • Very low leakage current. 2pA typical at VR=75V.
  • Low capacitance. 4pF max at VR=0V, f=1MHz.
  • In compliance with EU RoHS 2002/95/EC directives .087(2.2) .070(1.8) .054(1.35) .045(1.15).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAV170W-PanJitInternational.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAV199W Low-leakage double diode NXP
BAV199W DUAL SURFACE MOUNT LOW LEAKAGE DIODE Diodes Incorporated
BAV199W DUAL SURFACE MOUNT LOW LEAKAGE DIODE UTC
BAV199W LOW LEAKAGE DOUBLE DIODE SEMTECH
BAV199WQ DUAL SURFACE MOUNT LOW LEAKAGE DIODE Diodes

Other Datasheets by PanJit Semiconductor

Part Number Description
BAV199 LOW LEAKAGE SWITCHING DIODES
BAV199-AU (BAV170-AU / BAV199-AU) LOW LEAKAGE SWITCHING DIODES
BAV19 SWITCHING DIODES
BAV19WS-AU SURFACE MOUNT SWITCHING DIODE
BAV170 LOW LEAKAGE SWITCHING DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

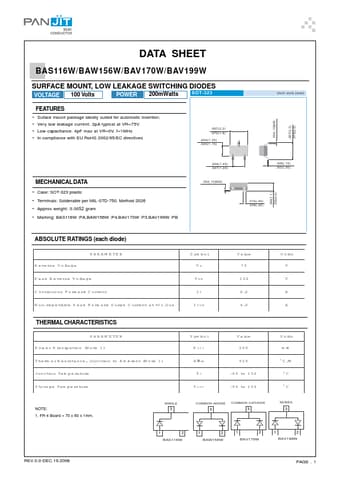

DATA SHEET BAS116W/BAW156W/BAV170W/BAV199W SURFACE MOUNT, LOW LEAKAGE SWITCHING DIODES VOLTAGE 100 Volts POWER 200mWatts SOT-323 FEATURES • Suface mount package ideally suited for automatic insertion. • Very low leakage current. 2pA typical at VR=75V. • Low capacitance. 4pF max at VR=0V, f=1MHz • In compliance with EU RoHS 2002/95/EC directives .087(2.2) .070(1.8) .054(1.35) .045(1.15) MECHANICAL DATA • Case: SOT-323 plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx weight: 0.0052 gram • Marking: BAS116W :PA,BAW156W :P4,BAV170W :P3,BAV199W :PB .056(1.40) .047(1.20) .004(.10)MAX. .044(1.1) .035(0.9) .004(.10)MIN. .087(2.2) .078(2.0) Unit: inch (mm) .006(.15) .002(.05) .016(.40) .008(.
