1N4750A - GLASS PASSIVATED JUNCTION SILICON ZENER DIODE

Product Overview

Pan Jit International

Part number	1N4750A
Manufacturer	Pan Jit International
File Size	385.59 KB
Description	GLASS PASSIVATED JUNCTION SILICON ZENER DIODE
Datasheet	1N4750A Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4750A, 1N4728A. Please refer to the document for exact specifications by model.

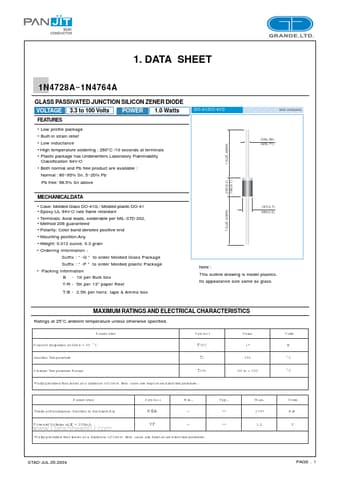

Additional preview pages of the 1N4750A datasheet.

Low profile package.
Built-in strain relief.
Low inductance.
High temperature soldering : 260°C /10 seconds at terminals.
Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above DO-41/DO-41G 1.0(25.4)MIN. Unit: inch(mm) .034(.86) .028(.71) .205(5.2) .160(4.1).
