SB2550FCT - ISOLATION SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Low power loss, high efficiency.
  • Low forwrd voltge, high current capability.
  • High surge capacity.
  • For use in low voltage,high frequency inverters .189(4.8)MAX .130(3.3)MAX .606(15.4) .583(14.8) .055(1.4) MAX .161(4.1) MAX .543(13.8) .512(13.0) free wheeling , and p.

📥 Download Datasheet

Datasheet Details

Part number SB2550FCT
Manufacturer Pan Jit International Inc.
File Size 46.54 KB
Description ISOLATION SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)
Datasheet download datasheet SB2550FCT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB2550FCT SCHOTTKY BARRIER RECTIFIER PACELEADER
SB2550FCT 25A DUAL SCHOTTKY BARRIER RECTIFIER WON-TOP
SB2550CT SCHOTTKY BARRIER RECTIFIER PACELEADER
SB2550CT 25A DUAL SCHOTTKY BARRIER RECTIFIER WON-TOP
SB2550DC 25A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER WON-TOP

Other Datasheets by Pan Jit International Inc.

Part Number Description
SB2550CT SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)
SB25100CT SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)
SB25100FCT ISOLATION SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)
SB2520CT SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)
SB2520FCT ISOLATION SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

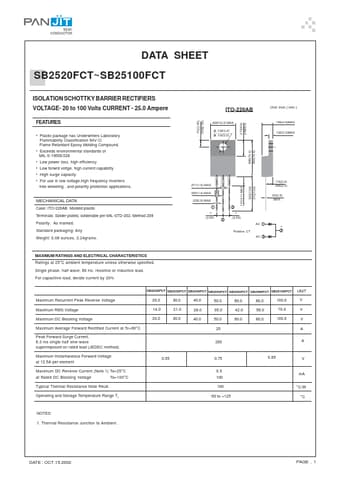

DATA SHEET SB2520FCT~SB25100FCT ISOLATION SCHOTTKY BARRIER RECTIFIERS VOLTAGE- 20 to 100 Volts CURRENT - 25.0 Ampere .112(2.85) .100(2.55) ITO-220AB .272(6.9) .248(6.3) .406(10.3) MAX .134(3.4) .118(3.0) Unit: inch ( mm ) FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • Low power loss, high efficiency. • Low forwrd voltge, high current capability • High surge capacity. • For use in low voltage,high frequency inverters .189(4.8)MAX .130(3.3)MAX .606(15.4) .583(14.8) .055(1.4) MAX .161(4.1) MAX .543(13.8) .512(13.0) free wheeling , and polarlity protection applications. .071(1.8) MAX .114(2.9) .098(2.5) .032(.
