ER501 - SUPERFAST RECOVERY RECTIFIERS(VOLTAGE - 50 to 600 Volts CURRENT - 5.0 Amperes)

Product Overview

Pan Jit International Inc.

📥 Download Datasheet

ER501 SUPERFAST RECOVERY RECTIFIERS(VOLTAGE - 50 to 600 Volts CURRENT - 5.0 Amperes) by Pan Jit International Inc. - Datasheet Preview — Datasheet preview – ER501

Datasheet Details

Part number	ER501
Manufacturer	Pan Jit International Inc.
File Size	62.47 KB
Description	SUPERFAST RECOVERY RECTIFIERS(VOLTAGE - 50 to 600 Volts CURRENT - 5.0 Amperes)
Datasheet	ER501 Datasheet

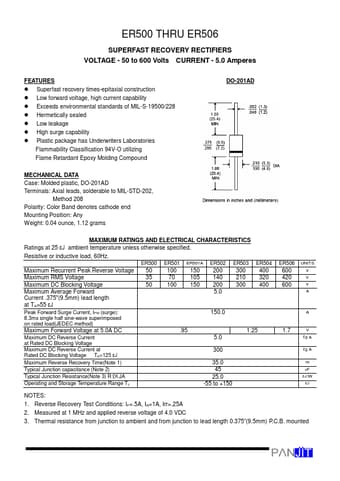

Additional preview pages of the ER501 datasheet.

Product details

Features

l Superfast recovery times-epitaxial construction l Low forward voltage, high current capability l l l l l Exceeds environmental standards of MIL-S-19500/228 Hermetically sealed Low leakage High surge capability Plastic package has Underwriters Laboratories Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
