PT0222432-B201, 240 X RGB X 320 DOTS DISPLAY

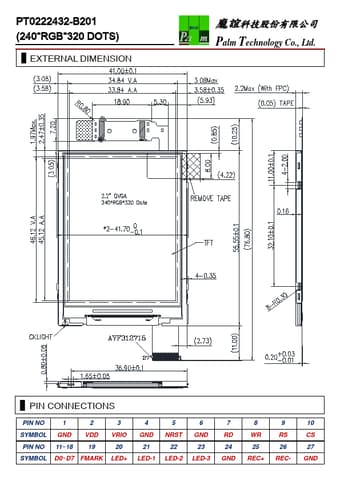

PT0222432-B201 (240 RGB 320 DOTS) ▉ EXTERNAL DIMENSION Palm Technology Co., Ltd.
▉ PIN CONNECTIONS PIN NO SYMBOL PIN NO SYMBOL 1 GND 11~18 2 VDD 19 3 VRIO 20 LED+ 4 GND 21 LED-1 5 NRST 22 LED-2 6 GND 23 LED-3 7 RD 24 GND 8 WR 25 REC+ 9 RS 26 REC10 CS 27 GND D0~D7 FMARK
