P54FCT244 - OCTAL BUFFER/LINE DRIVER

Description

The P54/74FCT244 is a non-inverting octal buffer and line driver designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers.

Features

Function, Pinout and Drive Compatible with the FCT and F Logic FCT-A speed at 5.1ns max (MIL) Output levels compatible with TTL and CMOS Edge-rate control circuitry for significantly improved noise characteristics P54FCT244/74fct244 OCTAL BUFFER/LINE DRIVER WITH 3-STATE.

PYRAMID

📥 Download Datasheet

Datasheet Details

Part number	P54FCT244
Manufacturer	PYRAMID
File Size	606.91 KB
Description	OCTAL BUFFER/LINE DRIVER
Datasheet	P54FCT244 Datasheet

📁 Similar Datasheet

P546HW01-V0 - Full HD Color TFT-LCD Module (AUO)
P546HW02-V0 - Full HD Color TFT-LCD Module (AUO)
P546HW03-V0 - TFT LCD Module (AUO)
P546HW04-V0 - TFT LCD Module (AUO)
P54B4SLK - Power MOSFETs (Shindengen)
P54B4SN - Power MOSFETs (Shindengen)

Other Datasheets by PYRAMID

P54FCT245 - OCTAL TRANSCEIVER

Full PDF Text Transcription

Click to expand full text

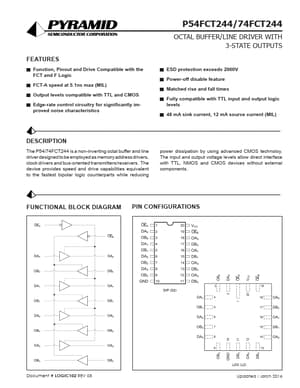

FEATURES Function, Pinout and Drive Compatible with the FCT and F Logic FCT-A speed at 5.1ns max (MIL) Output levels compatible with TTL and CMOS Edge-rate control circuitry for significantly improved noise characteristics P54FCT244/74fct244 OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS ESD protection exceeds 2000V Power-off disable feature Matched rise and fall times Fully compatible with TTL input and output logic levels 48 mA sink current, 12 mA source current (MIL) DESCRIPTION The P54/74FCT244 is a non-inverting octal buffer and line driver designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers.
