PT6554 - LCD Driver IC

PTC

📥 Download Datasheet

PT6554 Datasheet Preview — Preview of PT6554 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PT6554
Manufacturer	PTC
File Size	697.64 KB
Description	LCD Driver IC
Datasheet	PT6554_PTC.pdf

PT6554 Product details

Description

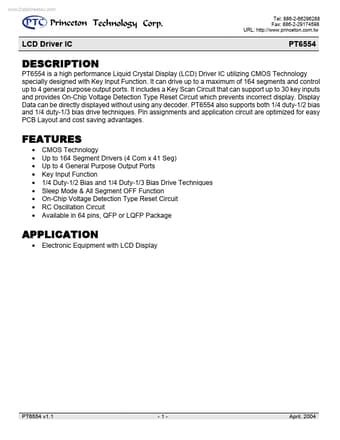

PT6554 is a high performance Liquid Crystal Display (LCD) Driver IC utilizing CMOS Technology specially designed with Key Input Function.

Features

CMOS Technology Up to 164 Segment Drivers (4 Com x 41 Seg) Up to 4 General Purpose Output Ports Key Input Function 1/4 Duty-1/2 Bias and 1/4 Duty-1/3 Bias Drive Techniques Sleep Mode & All Segment OFF Function On-Chip Voltage Detection Type Reset Circuit RC Oscillation Circuit Available in 64 pins, QFP or LQFP Package.
