PT2832 - Class-D Audio Power Amplifier

Name: PT2832
SKU: PT2832-1575483

PTC

📥 Download Datasheet

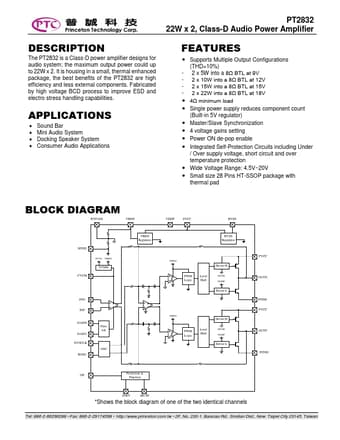

PT2832 Datasheet Preview — Preview of PT2832 PDF

Datasheet Details

Part number	PT2832
Manufacturer	PTC
File Size	303.63 KB
Description	Class-D Audio Power Amplifier
Datasheet	PT2832-PTC.pdf

PT2832 Product details

Description

The PT2832 is a Class-D power amplifier designs for audio system; the maximum output power could up to 22W x 2. Sound Bar Mini Audio System Docking Speaker System Consumer Audio Applications

Features

Supports Multiple Output Configurations (THD=10%) - 2 x 5W into a 8Ω BTL at 9V - 2 x 10W into a 8Ω BTL at 12V - 2 x 15W into a 8Ω BTL at 15V - 2 x 22W into a 8Ω BTL at 18V.
4Ω minimum load.
Single power supply reduces component count (Built-in 5V regulator).
Master/Slave Synchronization.
4 voltage gains setting.
Power ON de-pop enable.
Integrated Self-Protection Circuits including Under / Over supply voltage, short circuit and over temperature protection.
