PT2353 Satellite + Subwoofer 3-Speaker System Electronics Crossover IC

PT2353 Description

www.DataSheet4U.com Tel: 886-2-66296288 Fax: 886-2-29174598 URL: http://www.princeton.com.tw Satellite + Subwoofer 3-Speaker System Electronics Cros.
PT2353 is a 3-speaker system electronic crossover IC utilizing CMOS Technology specially designed for the new generation of audio equipments.

PT2353 Features

* CMOS Technology Low Power Consumption 2 Built-in Individual Volume Control: 0 dB to -60dB 2-Channel 2nd Order High Pass Filter + 1 Mixed Mono Subwoofer Low Pass Filter Cross-Over Frequency adjustable by external passive

📥 Download Datasheet

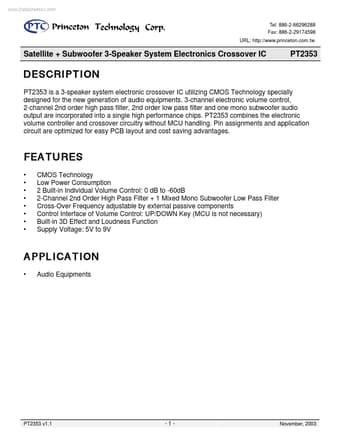

Preview of PT2353 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT2353
Manufacturer
PTC
File Size
108.47 KB
Datasheet
PT2353_PTC.pdf
Description
Satellite + Subwoofer 3-Speaker System Electronics Crossover IC
