PT16753 - Constant Current Buck LED Driver

Description

The PT16753 is buck topology switching regulator with constant current output for high-power LEDs driving purpose.

It integrates a 50V high side Nchannel MOSFET switch for step down conversion.

Features

  • AEC-Q100 Grade 1, operating temperature range TA = -40°C ~ 125°C.
  • 6 to 48 V supply voltage.
  • Asynchronous rectifier buck regulator with average output current mode control.
  • 2.5 Amps continue output current on a 2- layer PC board.
  • 3 Amps maximum output current in TA=25°C on a 4-layer PC board with additional heatsink.
  • Cycle-by-cycle current limit.
  • Integrated high side MOSFET switch.
  • PWM dimming controlled by logic level signa.

📥 Download Datasheet

Datasheet Details

Part number PT16753
Manufacturer PTC
File Size 577.09 KB
Description Constant Current Buck LED Driver
Datasheet download datasheet PT16753 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PT163003B Single 10Base-T/100Base-TX Transformer YCL
PT100 Platinum Resistance Temperature Detector RHOPOINT COMPONENTS
Pt100 Cable Sensor Baumer
Pt100 Platinum Sensing Resistors LABFACILITY
PT100-xxxx Power Toroids / Horizontal or Vertical Mount American Precision

Other Datasheets by PTC

Part Number Description
PT16751 Multi-Topology Automotive Headlight LED Driver
PT16752 Multi-Topology Automotive Headlight LED Driver
PT16103 480CH TFT LCD Source Driver
PT16512 LCD Driver
PT16514 LCD Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

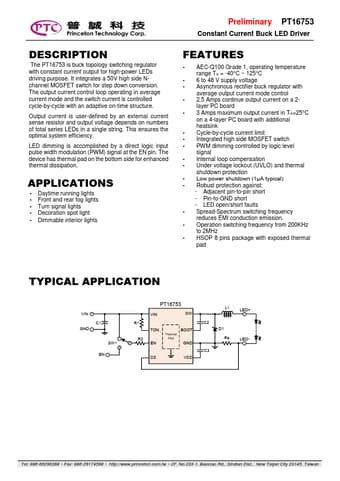

Preliminary PT16753 Constant Current Buck LED Driver DESCRIPTION The PT16753 is buck topology switching regulator with constant current output for high-power LEDs driving purpose. It integrates a 50V high side Nchannel MOSFET switch for step down conversion. The output current control loop operating in average current mode and the switch current is controlled cycle-by-cycle with an adaptive on-time structure. Output current is user-defined by an external current sense resistor and output voltage depends on numbers of total series LEDs in a single string. This ensures the optimal system efficiency. LED dimming is accomplished by a direct logic input pulse width modulation (PWM) signal at the EN pin. The device has thermal pad on the bottom side for enhanced thermal dissipation.
