MTC500A-1600V - Dual Thyristor Modules

MTC500A-1600V Description

Dual Thyristor Modules .

MTC500A-1600V Features

* Heat transfer through aluminium nitride ceramic isolated metal baseplate
* Precious metal pressure contacts for high reliability

MTC500A-1600V Applications

* DC motor control
* AC motor soft starters
* Temperature control
* Professional light dimming Maximum Ratings Symbol IT(AV) ITRMS ITSM I2t VDRM/VRRM di/dt Viso Tj Tstg W Condition Single phase，half wave，85°conduction Single phase，half wave，35°conduction Tj=125℃ Tj=125℃ non-repeti

📥 Download Datasheet

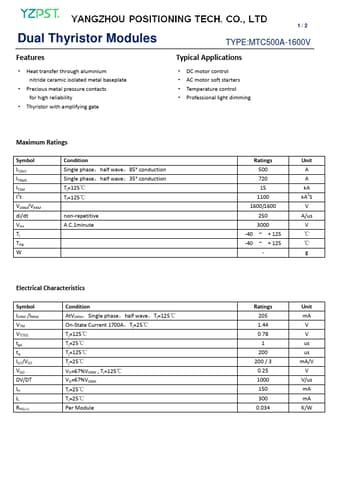

Preview of MTC500A-1600V PDF
datasheet Preview Page 2

Datasheet Details

Part number
MTC500A-1600V
Manufacturer
PST
File Size
347.65 KB
Datasheet
MTC500A-1600V-PST.pdf
Description
Dual Thyristor Modules
