PT3931 - 24V Single coil Hall Driver

PROLIFIC

📥 Download Datasheet

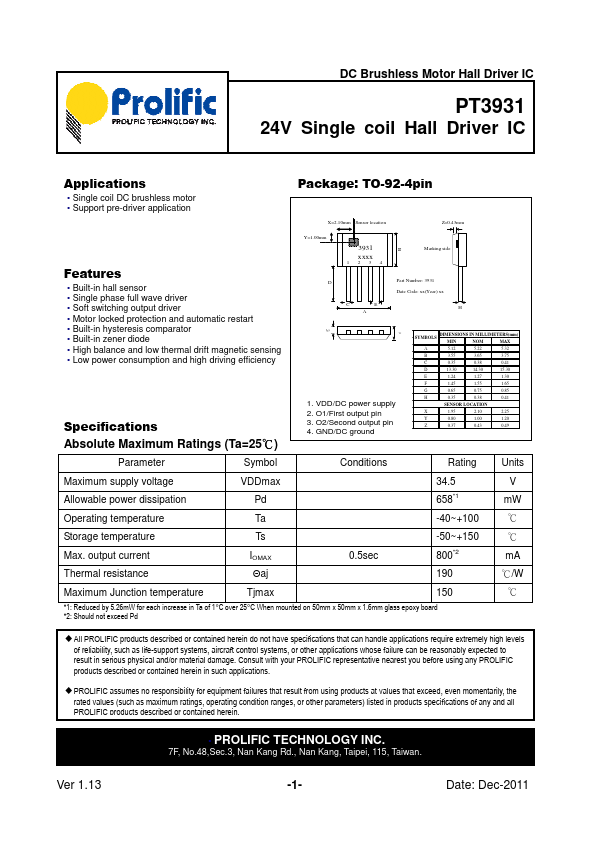

PT3931 Datasheet Preview — Preview of PT3931 PDF

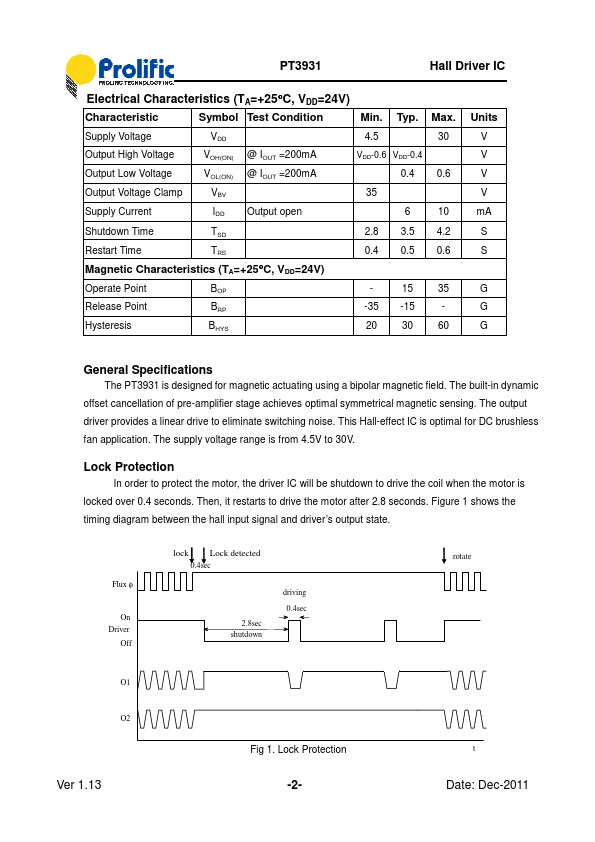

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PT3931
Manufacturer	PROLIFIC
File Size	0.96 MB
Description	24V Single coil Hall Driver
Datasheet	PT3931-PROLIFIC.pdf

PT3931 Product details

Features

Built-in hall sensor Single phase full wave driver Soft switching output driver Motor locked protection and automatic restart Built-in hysteresis comparator Built-in zener diode High balance and low thermal drift magnetic sensing Low power consumption and high driving efficiency Specifications Absolute Maximum Ratings (Ta=25℃) Y=1.00mm 3931 x xxx 1234 B Marking side D C E A Part Number: 3931 Date Code: xx(Year) xx H G F 1. VDD/DC power supply 2. O1/First output pin 3. O2/Second outpu.
