PT3926 - Single coil Hall Driver

PROLIFIC

📥 Download Datasheet

PT3926 Datasheet Preview — Preview of PT3926 PDF

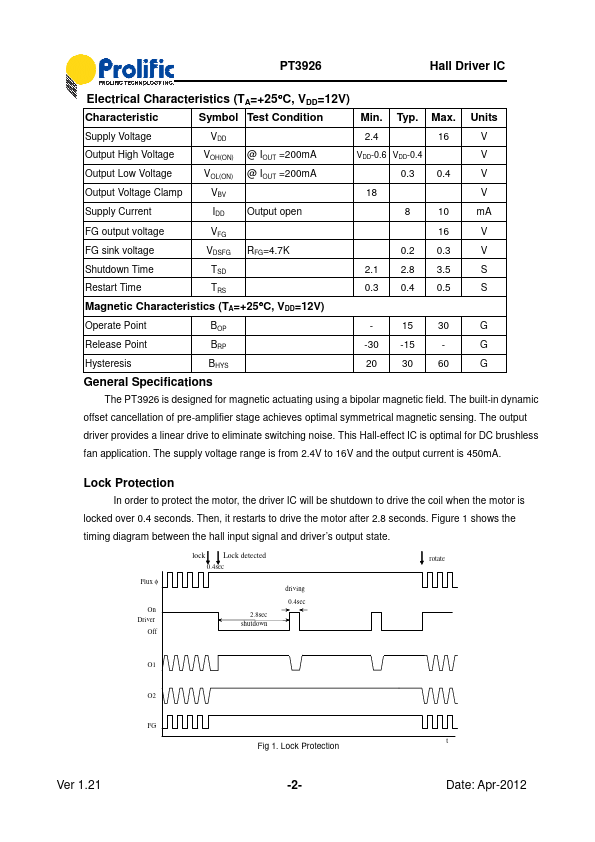

datasheet Preview Page 2

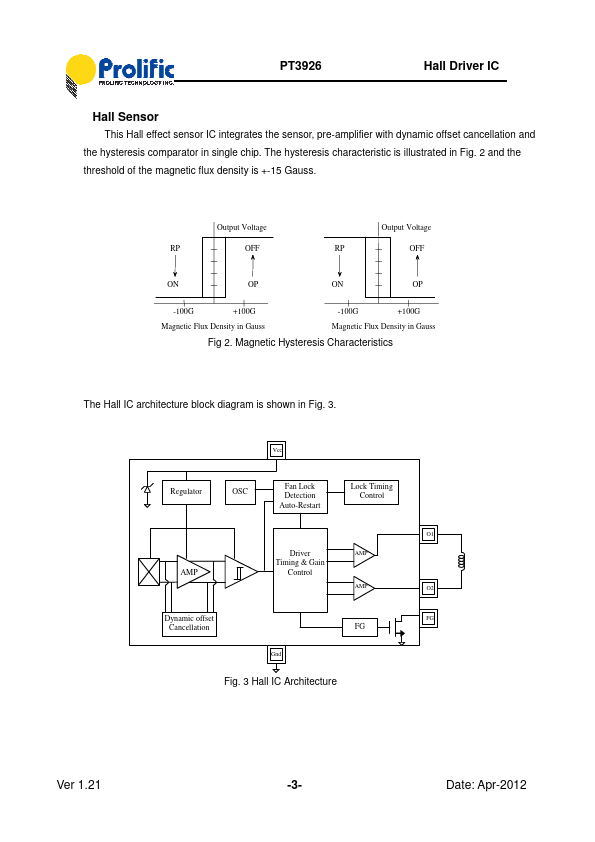

datasheet Preview Page 3

Datasheet Details

Part number	PT3926
Manufacturer	PROLIFIC
File Size	827.83 KB
Description	Single coil Hall Driver
Datasheet	PT3926-PROLIFIC.pdf

PT3926 Product details

Features

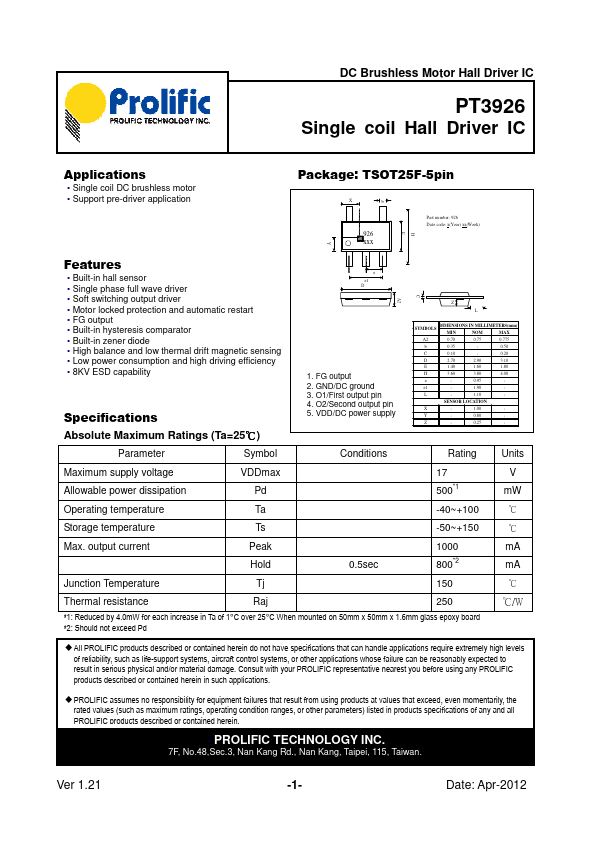

Built-in hall sensor Single phase full wave driver Soft switching output driver Motor locked protection and automatic restart FG output Built-in hysteresis comparator Built-in zener diode High balance and low thermal drift magnetic sensing Low power consumption and high driving efficiency 8KV ESD capability Specifications ℃ Absolute Maximum Ratings (Ta=25 ) e e1 D 1. FG output 2. GND/DC ground 3. O1/First output pin 4. O2/Second output pin 5. VDD/DC power supply Z L.
